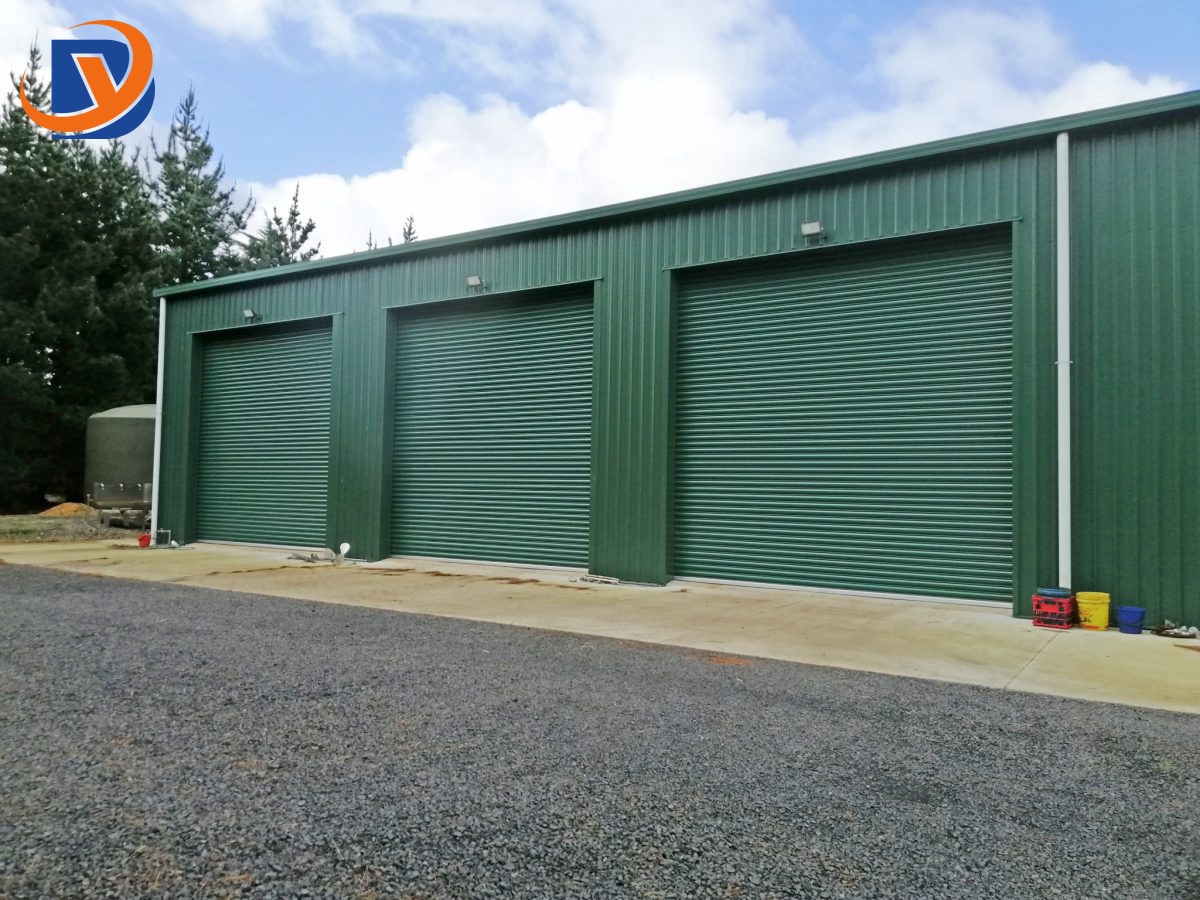

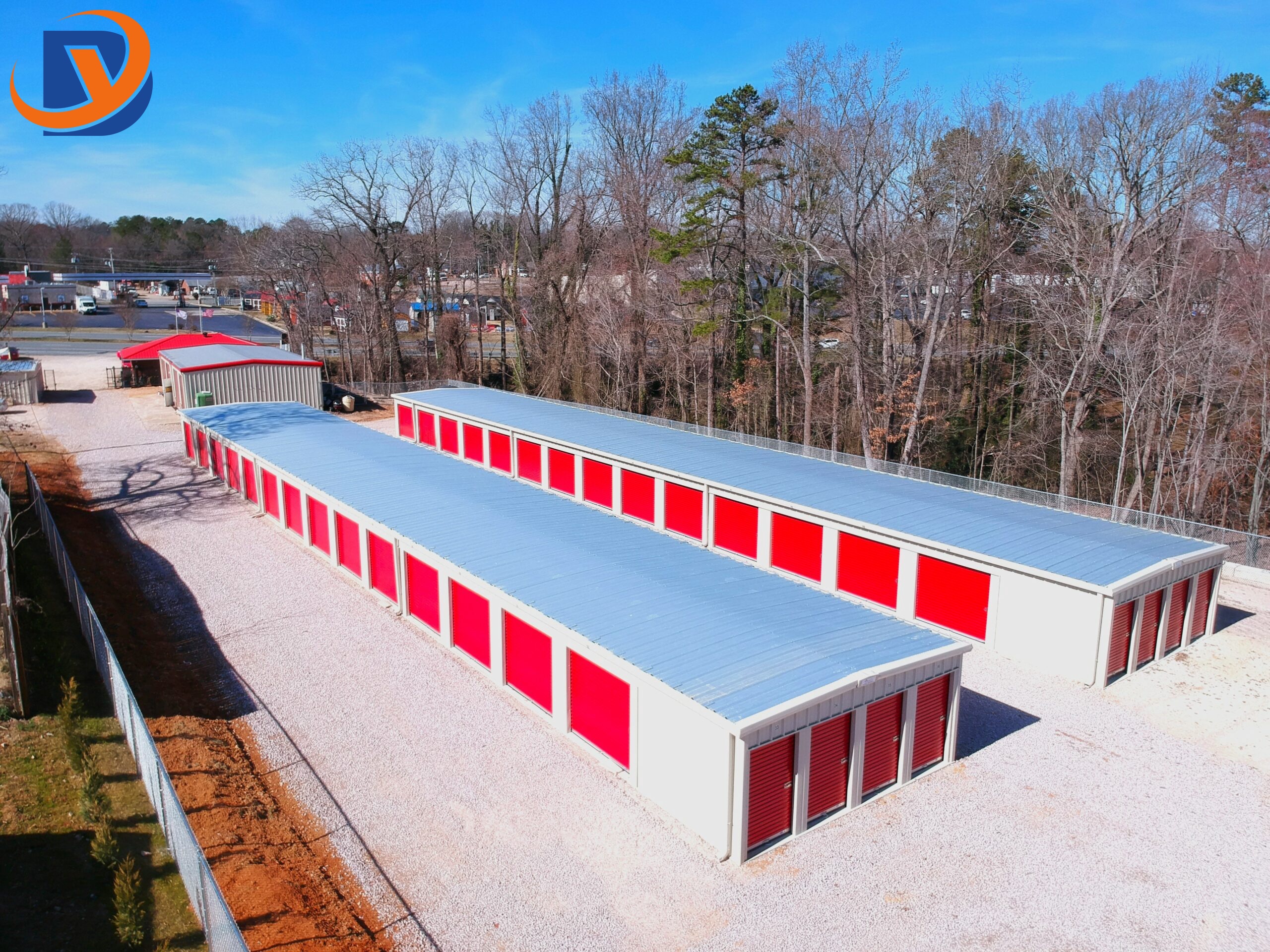

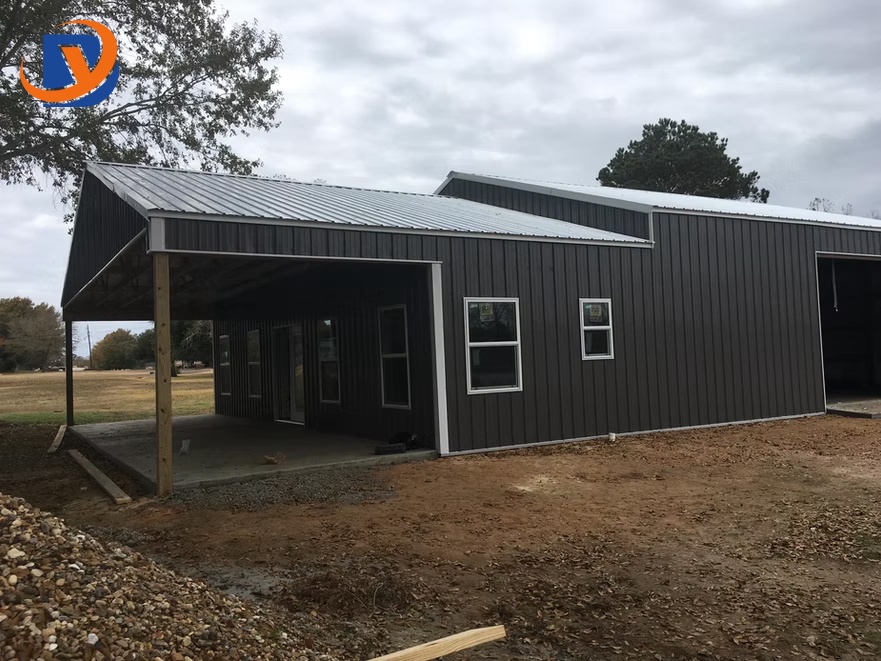

Steel Structure Factory Building

Steel Structure Factory Building

Steel structure warehouses features of high fire resistance, strong corrosion resistance. Steel structure storehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

Product Parameters

STEEL STRUCTURE WAREHOUSES

*  Strength & Flexibility:High-strength steel framework offering large, column-free spaces (up to 40m wide) with exceptional load-bearing capacity.

*  Fast Construction:Prefabricated steel components for efficient on-site assembly, reducing construction time.

*  Cost-Effective: Starting at just $25 per square meter, providing a durable and budget-friendly solution.

*  Durable & Safe:Built to last over 50 years, resistant to earthquakes (magnitude 8) and strong winds (up to 70 m/s), ensuring long-term safety and reliability.

Ideal for Warehouses, factories, storage facilities, and distribution centers.


Material List
Project sampleSteel structure warehouse
Building sizeSuch as 78*30*8.5 m/ customized
Main steel structure
Steel columnH(300-550)*200*6*10 mm ,steel Q345
Steel beamH(300-550)*180+6,8 mm,H 300+180+6-8 mm,steel Q345
Second steel structure
Roof purlinC180*75*50*2.5 mm
Wall purlinC180*75*50*2.5 mm
Cross support20 round steel bar, steel Q 235
Column bracing20 round steel bar, steel Q 235
Angle braceL50*4 Angle steel , steel Q 235
Tie bar89*3 mm, steel Q235
Roof and wall panel
Roof panel50/80/100/150/200 mm sandwich panel (EPs, PU, Rock wool,Glass wool)
Wall panel50/80/100/150/200 mm sandwich panel (EPS, PU, Rock woolGlass wool
Rolling up doorAutomatic rolling up door
Single wing doorSandwich panel door
WindowAluminum/ Pvc sliding window with single glass
FittingsGlass adhesive, self-tapping screw, etc
Other fittings
EmbeddedM 24 steel Q 235, process
Intensive boltGrade 10.9
Product namePrefabricated steel structure warehouse
Main materialsMain structure
Q355B Welded H beam and column (equivalent to S355JR, ASTM A572 Gr. 50)
Secondary structureQ235B (equivalent to S235JR, ASTM A36)
SurfacePainting or galvanizing
Roof & wall panelSingle steel sheet & Insulated sandwich panels (PU, PIR , rock wool, glass wool, EPS, EPS cement, glass curtain wall...)
DoorsCustomizable options: sliding doors, roller shutter doors, security doors, fire door, storefront systems, garage glass doors,pedestrian doors, cold storage doors, aircraft hangar doors...
WindowsPVC, aluminum alloy...
Crane systemsMonorail crane, underhung crane, top running crane...
Our serviceDesign
Professional structural design
Manufacture
We can manufacture all kinds of steel structure products based on different conditions of projects
Installation
We provide detailed drawings to ensure installation. We also provide remote guidance for installation. We can also send a team of engineers to guide or install on site.
Quality inspectionFactory Self-inspectionCustomer inspection Third party inspection
Other components are available upon request, please provide the detailed for custom design
