Steel Structure Factory Warehouse

Steel Structure Factory Warehouse

Steel structure workshop has features of high fire resistance, strong corrosion resistance. Steel structure plant is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.The advantage of steel structure buildings is that the internal space is wide, large-scale production equipment can be used, and sufficient storage space for raw materials can be provided to ensure continuous production.

Product Parameters

STEEL STRUCTURE WORKSHOP

*  Strength & Flexibility: Large, column-free spaces (up to 36m wide) with high structural integrity.

*  Fast Construction: Prefabricated components for quicker on-site assembly.

*  Cost-Effective: Starting at just $35 per square meter.

*  Durable & Safe: Designed for 50+ years, resistant to earthquakes (magnitude 8) and strong winds (up to 70 m/s).

Ideal for factories, warehouses, logistics centers, and exhibition halls.


Material SpecificationMain steel: Q235/Q355 high-strength steel; enclosure: color steel plate + fire-retardant insulation cotton.
Anti-Corrosion TreatmentAll steel components undergo shot blasting derusting + galvanizing/spraying, resisting moisture and fecal corrosion.
Core AdvantagesModular steel components: Quick assembly/disassembly; multi-type insulation materials: Adapt to different climates, reduce heating/cooling costs; all materials: Recyclable, green and cost-effective.
Structural Performance & Material MatchSloped roof (color steel + insulation layer): Rapid drainage & heat preservation; load-bearing steel: Supports feeding/ventilation equipment without deformation; insulation materials are tightly fitted to avoid heat loss.
Material Application by Climate & ScenarioHumid areas: Rock wool insulation + hot-dip galvanized steel + waterproof enclosure; cold areas: Polyurethane composite board/thickened rock wool + sealed structure; large-scale farms: Q355 steel + modular design + sound-absorbing glass wool.
Maintenance & Material DurabilityGalvanized components: No frequent painting; color steel plate: Anti-fading, service life ≥15 years; insulation materials: Rock wool/glass wool service life ≥20 years, polyurethane board ≥15 years; overall structure maintenance cycle ≥5 years.
Custom & Material OptionCustomizable material specifications (steel thickness, insulation grade/length); provide material test reports (fire, insulation,corrosion resistance) to meet breeding industry standards.
ItemsSpecification
Main Steel FrameColumnQ235, Q355 Welded H Section Steel
BeamQ235, Q355 Welded H Section Steel
Secondary FramePurlinQ235 C and Z purlin
Knee braceQ235 Angle Steel
Tie RodQ235 Circular Steel Pipe
BraceQ235 Round Bar
Vertical and Horizontal SupportQ235 Angle Steel, Round Bar or Steel Pipe
Maintenance systemRoof PanelEPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall PanelSandwich Panel / Corrugated Steel Sheet
AccessoriesWindowAluminiumn Alloy Window / PVC Window / Sandwich Panel Window
DoorSliding Sandwich Panel Door / Rolling Metal Door
Rain spoutPVC
Live load on RoofIn 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade12 Grades
Earthquake-resistance8 Grades
Structure UsageUp to 50 years
Finishing OptionsVast array of colors and textures available
Paint OptionsAlkyd paiting, two primary painting, two finish painting
(Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.
Characteristics:
1. Different types and sizes according to customer's needs, large or small, wide span: single span or multiple spans, the max span is 36m without middle column.
2. Low cost and maintenance: unit price range from USD30/m2 to USD70/m2 according to customers request.
3.Fast construction and easy installation: time saving and labor saving, all the items are factory made,precut,prewelded, predrilled,prepainted.
4.Reduced construction waste, long using lifespan: up to 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

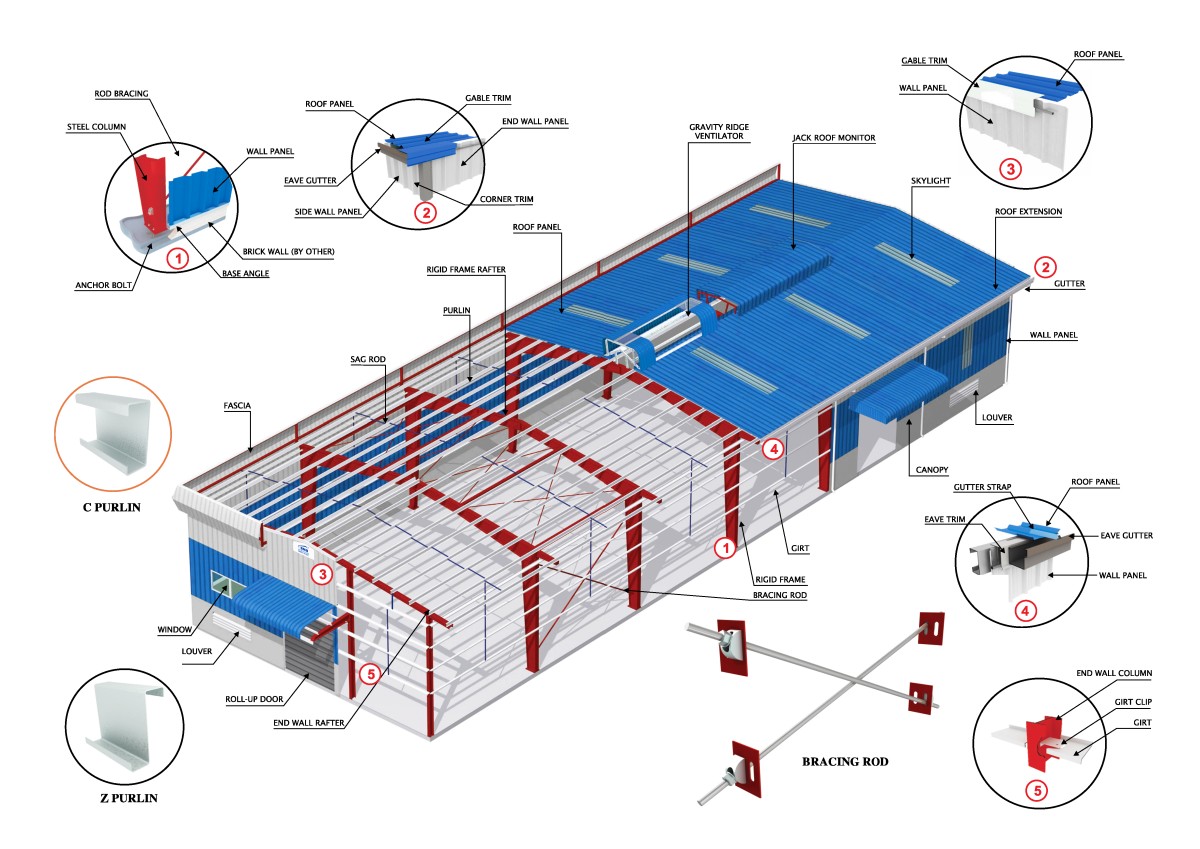

Product Display

钢结构-车间

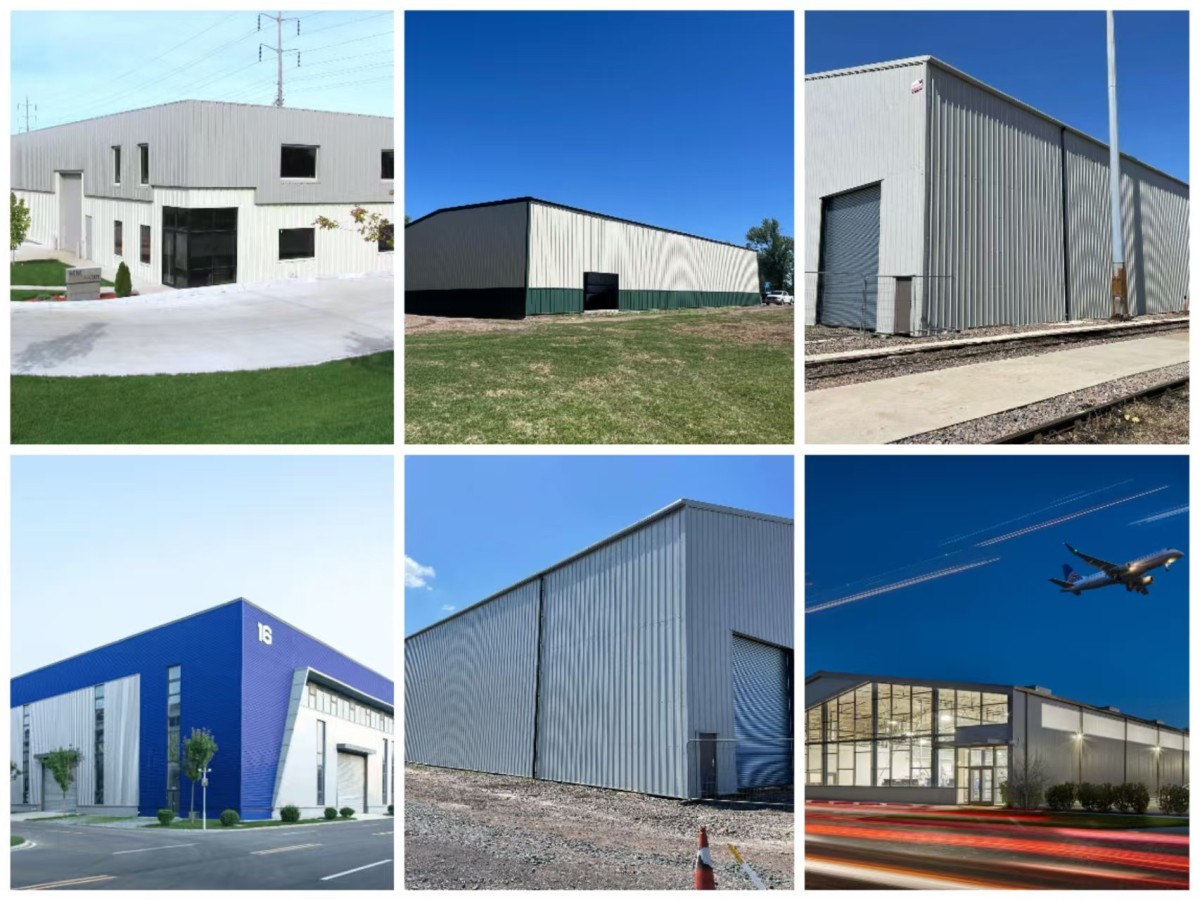

Product Application


869dca6a44bf5b4fa3a287ef4470e920


Product Packaging

f07d8fbde00dbbcca3255e818acecfd7


Factory Display

新对话

生产图


certificate of honor

  • EBSZ2506230916EC 镀锌钢管 CE-Rohs Cert_page-0001
  • EBSZ2506230915EC 不锈钢板 CE-Rohs Cert_page-0001
  • EBSZ2506230914EC 无缝钢管 CE-Rohs Cert_page-0001
  • 中文-Q-山东春晓钢管制造有限公司_副本
  • 中文-E-山东春晓钢管制造有限公司_0_副本
  • 中文-S-山东春晓钢管制造有限公司_副本
  • 山东春晓钢管制造有限公司-重合同守信用企业_副本
  • 山东春晓钢管制造有限公司-重服务守信用企业_副本
  • 山东春晓钢管制造有限公司-质量服务诚信单位_副本
  • 山东春晓钢管制造有限公司-企业资信等级_副本
  • 山东春晓钢管制造有限公司-企业信用等级_副本
  • 山东春晓钢管制造有限公司-诚信企业家_副本
  • 山东春晓钢管制造有限公司-诚信经营示范单位_副本

FAQ

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.
Q: Do you provide samples ? Is it free or extra ?
A: The samples are free,you just need to pay the courier freight.
Q: How could you guarantee your products?
A: Products are manufactured by certified workshops, inspected by professional inspector.
Q: Do you accept the third party inspection?
A: Yes, absolutely we accept.
Q: How do we trust your company?
A: We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.
Q: What's your advantages?
A: Our own production lines make the good prices and high quality possible and seasoned workers serve you 7*24 hours.
Q: Can you produce the products according to my own drawings?
A:Yes,we can produce the products according to your drawings that will be most satisfy you.
Q: What is your Payment?
A: 100% T/T advance , Western Union (For Small Order)
B: 30% T/T and balance 70% before the shipment
C: 100% Irrevocable LC at sight (For Big Order)
Q: How long is the Delivery time?
A: 7~20 working days after confirming the payment.
If the order is urgently, we will push our workshop finish in advance.
