Craftsmanship breaks the deadlock! Our company successfully delivered customized precision galvanized pipes to Turkey, overcoming the processing challenges of unconventional dimensions

Recently, our company successfully concluded the customized precision galvanized pipe processing project in Turkey through our independent website. In response to the client's challenging demand of "precise dimensions and no available stock", the company, relying on its professional technical analysis capabilities, efficient cross-language communication mechanism and meticulous craftsmanship, ultimately delivered a product that met the requirements perfectly. This won high recognition and written praise from the Turkish client, adding another outstanding case to the international business expansion of the company's Google independent website.

1. Unconventional demand arrives: Precise size + No available supply, challenging the processing limit of the industry

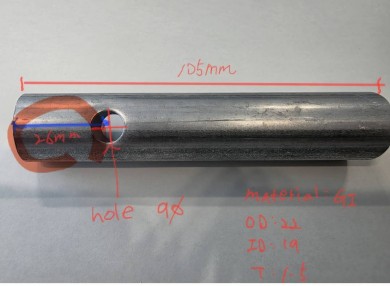

      The opportunity for this cooperation originated from a cooperation request sent by a Turkish machinery manufacturing enterprise through the company's Google independent website. This client is deeply involved in the industrial equipment manufacturing field and urgently needed a batch of specific-sized galvanized pipe components. The core requirement was described as "extremely demanding": On one hand, the size precision needed to be controlled within ±0.02mm, and the key parameters such as pipe diameter, length, and wall thickness were all non-standard industry specifications, with no available spot purchase in the market; on the other hand, the product needed to have strong corrosion resistance and uniform galvanized layer to adapt to the industrial environment in Turkey, while also meeting the sealing and stability requirements for equipment assembly.

     "The client clearly stated in the email that they had consulted several processing enterprises in Turkey and China, but were all rejected due to overly special sizes and high precision requirements," recalled the project's business manager. "During the communication through Google's independent website, the client attached detailed three-dimensional drawings and technical parameter tables, and the words in them could convey their urgency and concerns." For the galvanized pipe processing industry, the size tolerance of regular products is usually around ±0.1mm, while the precise processing of unconventional sizes not only requires precise equipment support but also solves a series of technical problems such as material deformation and uniformity of the galvanized layer, which is also the core reason why most enterprises are reluctant to proceed.

2. Detailed analysis of drawings + Cross-border communication: Precisely anchoring the core demands of the client

     After receiving the client's requirements, the company immediately launched a special service team consisting of key members from the technical department, production department, and business department. The primary task was to conduct a comprehensive analysis of the client's drawings. The technical team used professional CAD software to repeatedly calculate the key parameters such as pipe diameter, wall thickness, length, and interface threads. At the same time, considering factors such as material properties, processing process feasibility, and galvanized layer adhesion, they identified potential risk points one by one. "We found that some of the processing error requirements for certain dimensions in the client's drawings exceeded the precision range of conventional equipment, and there were differences in the required thickness of the galvanized layer in different parts, which required us to optimize the processing process and galvanizing plan accordingly," explained the technical director.

       Based on the analysis of the drawings, the company and the client held multiple rounds of cross-border communications. Considering language differences and time zone issues, the business team used a combination of "emails + video conferences" to ensure the written confirmation of technical details and solve questions in real time. During the video conference, technicians used visual methods such as drawing annotations and 3D model demonstrations to explain the processing difficulties and solutions in detail to the client, while patiently listening to the client's supplementary requirements. "The customers were very concerned about the practical application scenarios of the products. They mentioned that this batch of galvanized pipes would be used in the hydraulic systems of high-precision machinery. Therefore, they not only required precise dimensions, but also needed good pressure resistance and anti-fatigue properties." The business manager said that after three rounds of in-depth communication, both parties finally clarified all technical parameters, acceptance standards, and delivery times, laying a solid foundation for the project's progress.

3. Trial and Error with Multiple Schemes + Process Innovation: Overcoming Challenges in Processing Unconventional Sizes

       After the drawings were confirmed, the project entered the core stage of scheme development and trial production. In response to the customer's precise size requirements and special galvanizing needs, the technical team designed three processing schemes and conducted small-scale trial production comparisons.

The first scheme used the conventional cold drawing process to process the pipe materials, followed by hot galvanizing treatment. However, the trial production results showed that although the pipe materials after cold drawing met the basic size accuracy requirements, the high temperature during the hot galvanizing process caused slight deformation of the pipe materials, exceeding the tolerance range required by the customer, and the galvanized layer accumulated locally at the interface threads, affecting the assembly accuracy.

       The second scheme was adjusted to the "rough processing → galvanizing → fine processing" process, attempting to correct the size deviations after galvanizing through subsequent fine processing. However, during actual operation, it was found that the galvanized layer was prone to damage and detachment during the fine processing, unable to guarantee the corrosion resistance performance. This scheme was also rejected.

       Facing the unsatisfactory results of the two trial productions, the team did not lose heart. Instead, they reorganized the process logic and focused on the core issue of "how to ensure size accuracy while ensuring a uniform and firm galvanized layer". After repeated discussions, the technical team finally determined the third scheme: using high-precision CNC lathes to process the pipe materials, strictly controlling the size error through segmented processing and multiple calibrations; the galvanizing process innovatively adopted the "electro-galvanizing + passivation treatment" combination scheme, adjusting the current density and galvanizing time according to the requirements of different parts to ensure uniform thickness and strong adhesion of the galvanized layer.

       To meet the ±0.02mm accuracy requirement, the production workshop used imported high-precision detection equipment. After each processing procedure, real-time size detection was conducted, and deviations were immediately adjusted. During the galvanizing process, technicians optimized dozens of details such as fixture design, solution concentration, and temperature control, ultimately solving key problems such as zinc layer accumulation at the threads and size deformation after galvanizing. The samples from the trial production were tested, and all size parameters met the customer's requirements, with uniform galvanized layer thickness, strong adhesion, and successful passing of pressure resistance and anti-fatigue tests.

      "This process was indeed full of challenges. We conducted 12 small-scale trial productions and adjusted nearly 20 process parameters," the production department supervisor said with amazement. "For example, to control the size deformation during galvanizing, we specially customized special fixtures, fixed the pipe materials during galvanizing, and optimized the composition of the galvanizing solution to reduce the impact of high temperatures on the materials. Each trial production was an accumulation of experience, and finally, we found the optimal solution."

4. Perfect Delivery + Customer Praise: Winning International Recognition with Strength

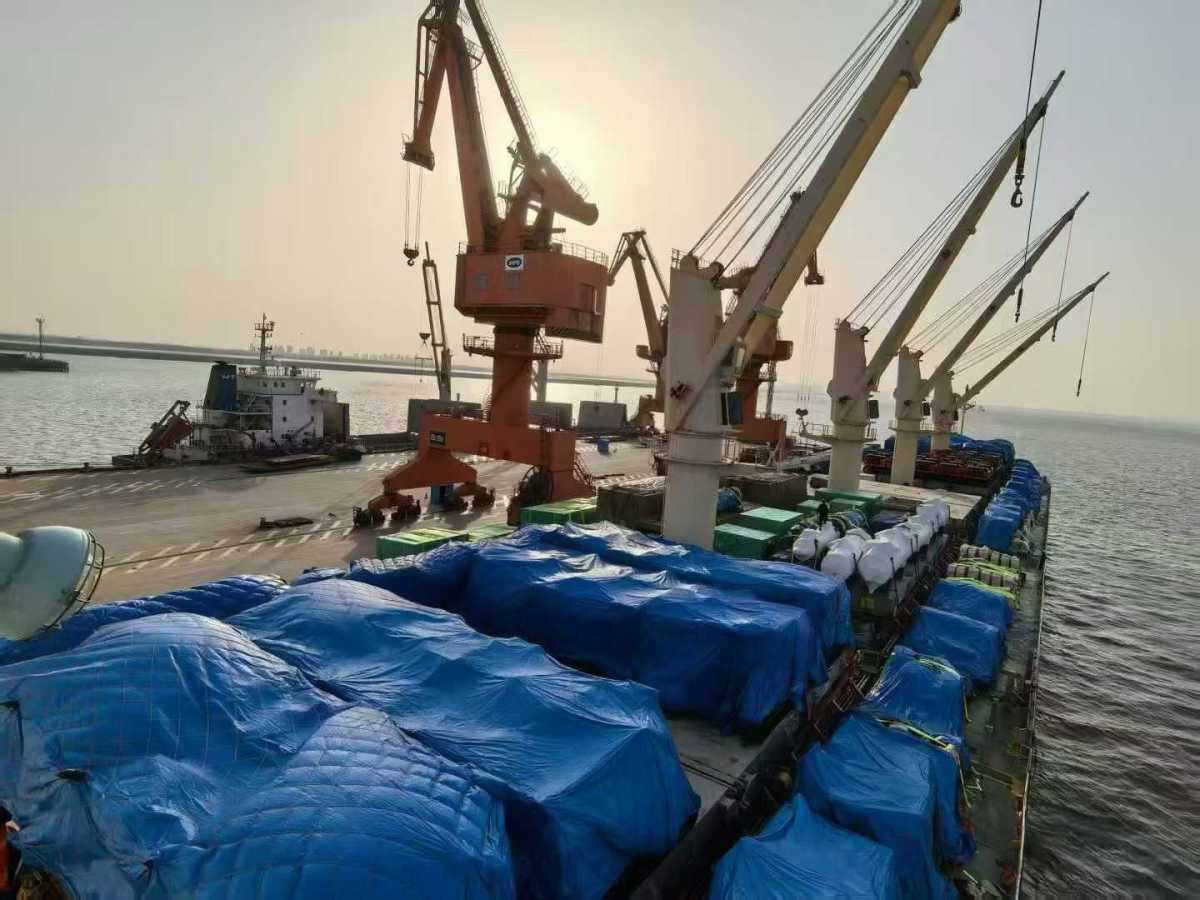

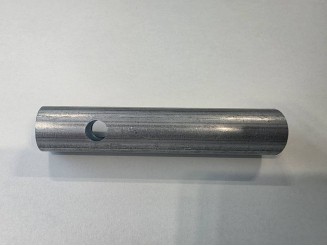

       After nearly a month of hard work, the first batch of customized precision galvanized pipes was officially rolled off the production line. Before delivery, the company conducted comprehensive inspections according to the agreed acceptance standards, including size accuracy, galvanized layer thickness, adhesion, pressure resistance, etc., with all test results meeting the standards in one go. Subsequently, the products were quickly dispatched to Turkey via international logistics, with real-time tracking of logistics information to ensure the goods were delivered on time and in good condition.

        After receiving the goods, the customer immediately conducted sampling tests and equipment installation tests, and promptly sent feedback to the company. "Beyond expectations!" The dimensions of all products fully meet our design requirements. The galvanized coating is uniform and smooth. The assembly process was very smooth. The hydraulic system after installation runs stably without any leakage or insufficient pressure issues." The customer wrote in the email, "Your company's professional technical capabilities, rigorous work attitude and efficient service level have impressed us deeply. This is a very pleasant cooperation experience. In the future, we will list your company as a core supplier and continue to carry out in-depth cooperation."

        In addition, the customer specially shot a video of the product installation and sent it to the evaluation area of the company's Google independent website, accompanied by detailed positive comments, adding further support to the company's international reputation. Up to now, many overseas customers have seen this case through the Google independent website and actively consulted for customized galvanized pipe processing services, further expanding the company's international market channels.
